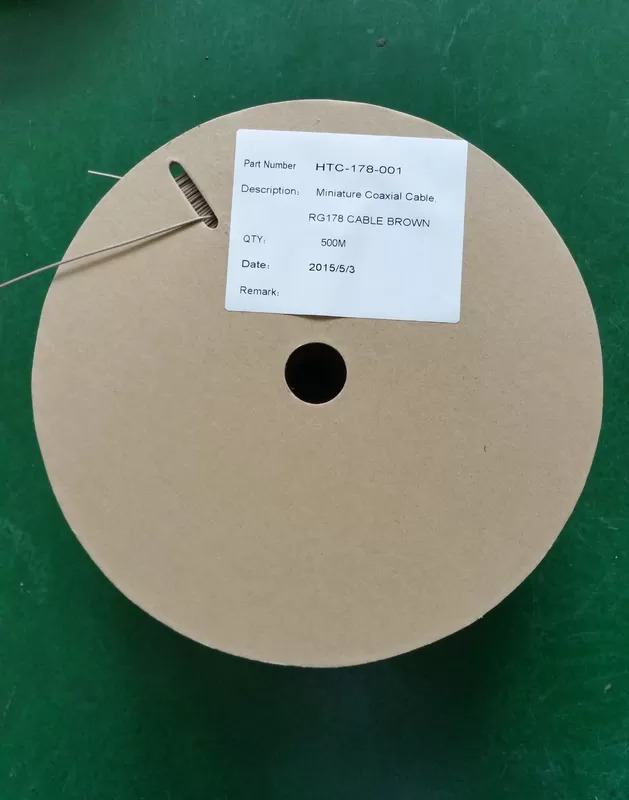

0~6 GHz RG 178 Wireless Communication System Miniature Coaxial Cable With Silver Plated Copper Wire
SIA-HTC-178-001
- Frequency： 0~6 GHz
- Connector： Silver Plated Copper Wire; 7 X 0.10mm
- Insulator： FEP; 0.9 Mm
- Braid： Tinned Copper Wire; Nom. 1.37 Mm
- Jacket： FEP, 1.78 Mm
- 产品参数
- Frequency： 0~6 GHz
- Connector： Silver Plated Copper Wire; 7 X 0.10mm
- Insulator： FEP; 0.9 Mm
- Braid： Tinned Copper Wire; Nom. 1.37 Mm
- Jacket： FEP, 1.78 Mm
Detail Product Specification:
Conductor: Silver plated copper wire; 7x0.10mm
Insulator: FEP; 0.9mm
Braid: Tinned copper wire; Nom. 1.37mm
Jacket: FEP; 1.78mm
Application:
1. Notebook PC
2. Router
3. IEEE802.11 WLAN System
4. Wireless Communication System
Specification:
| Structure Characteristics | ||
| Structure | Item | Standard Value |
| Inner Conductor | Material | Silver plated Copper Wire |
| Makeup: Total / O.D. of every wire(mm) | 7/0.102 | |
| NOM.O.D.(mm) | 0.306±0.01 | |
| Insulation | Material | FEP |
| Color | Clarity | |
| NOM.O.D.(mm) | 0.9±0.02 | |
| Outer Conductor | Material | Tinned Copper Wire |
| Makeup: Total / O.D. of every wire(mm) | 4/0.10 | |
| NOM.O.D.(mm) | 1.37±0.05 | |
| Coverage Ratio (%) | ≥90 | |
| Jacket | Material | FEP |
| Color | Custom | |
| NOM.O.D.(mm) | 1.78±0.05 | |
| Electrical Characteristics | ||||
| Item | Standard Value | Item | Frequency | Standard Value Unit: dB/m |
| Capacitance(pF/m) | ≤100 | Attenuation | 1GHz | ≤2 |
| Velocity (%) | — | 2GHz | ≤2.9 | |
| Impedance(Ω) | 50±2 | 3GHz | ≤3.7 | |
| Max. Operating voltage(V) | 1000 | 4GHz | ≤4.3 | |
| Max. Operating frequency(GHz) | — | 5GHz | ≤4.8 | |
| Standing Wave Ratio | ≤1.3@0~6GHz | 6GHz | ≤5.3 | |
| Mechanical Characteristics | ||
| Item | Unit | Standard Value |
| Min. bending radius static | mm | — |
| Min. bending radius repeated | mm | — |
| Operating Temperature | ℃ | — |
