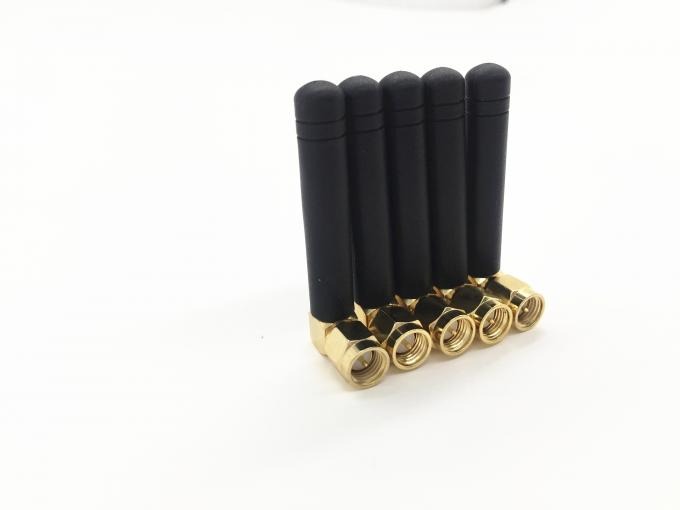

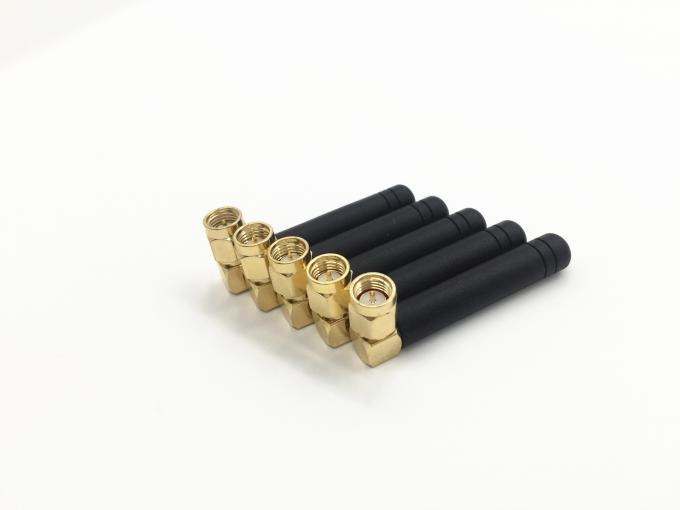

Black Right Angel Omni Directional WiFi Antenna 2400-2500 Mhz Frequency
SIA-AN3000-4717SM
- Frequency： 2400-2500 Mhz
- S.W.R： 1.5 Max.
- Impedance： 50 Ω
- Connector： SMA Male RP-SMA Male;
- Color： Black
- Gain： 2dbi
- 产品参数
- Frequency： 2400-2500 Mhz
- S.W.R： 1.5 Max.
- Impedance： 50 Ω
- Connector： SMA Male RP-SMA Male;
- Color： Black
- Gain： 2dbi
Specification:
Centre Frequency: 2400~2500 MHz
VSWR: ≤ 1.5
Impedance: 50 ohm
Polarization: Similar Dipole/ similar; Telescope-feed; Monopole
LNA Gain: 2 dBi
Input power(Max): 20
Connector: SMA male / RP SMA MALE
Application:
1.Wi-Fi /WLAN /MEMO /Bluetooth System
2. Router
3. IEEE802.11 WLAN System
4. Wireless Communication System
Specification:
| ITEM | CDMA | GSM | 3D | WIFI |
| Frequ e ncy(MHz) | 824~880 | 890~960/1850~1990 | 1710~2170 | 2400~2483 |
| Gain(dB) | 2 | |||
| V.S.W.R | ≤ 1.5 | |||
| Impedance | 50 | |||
| Input Power | 20 | |||
| Connector | SMA | |||
| Weight(g) | ≤ 1 00(with SMA connector) | |||
| Size(mm) | 50 | |||
| Color | Black | |||
