Product Design Level:Universal connector (Level 2)

1.  Working Voltage:335V

2.  Temperature Range :-40°C～＋85°C

3 . Frequency Range:DC-4GHz

4.  Impedance:50Ω

Technical Parameters:

1 Electrical Properties: VSWR:﹤1.3

2. Contact Resistance:Center Contact≤6mΩ;  Outer Contact≤1mΩ

3. Insulation Resistance:1000MΩ

4. Medium Pressure:1000V (Conform to the MIL-PRF-39012 paragraph 3.17)

Mechanical Properties :

1. Shell Retention:＞110Ｎ (Conform to the MIL-PRF-39012 paragraph3.5 Axial Force)

2. Insertion force:≤ 25N (Conform to the MIL-PRF-39012 paragraph3.5 Axial Force)

3. Pull out the output: ≤25N (Conform to the MIL-PRF-39012 paragraph3.5 Axial Force)

4. Mechanical life:＞50 cycles(frequency 10 cycles/MIN) (Conform to the MIL-PRF-39012 paragraph 3.15)

5. SMB connectors mechanical life:＞500 cycles(frequency 12 cycles/MIN)

Environmental Performance

1. Temperature Range:environment temperature -40°Ｃ～105°Ｃ

2. Salt Fog:＞48Ｈ

3. Resistance to Moisture:Relative humidity＋40°Ｃ When it is up to 95％

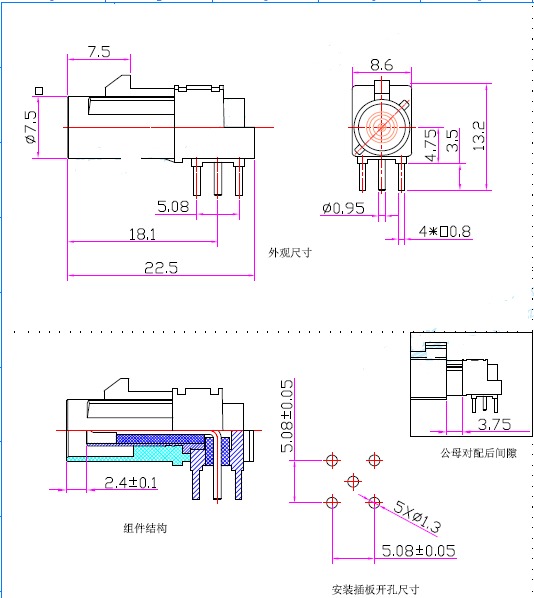

Drawing
