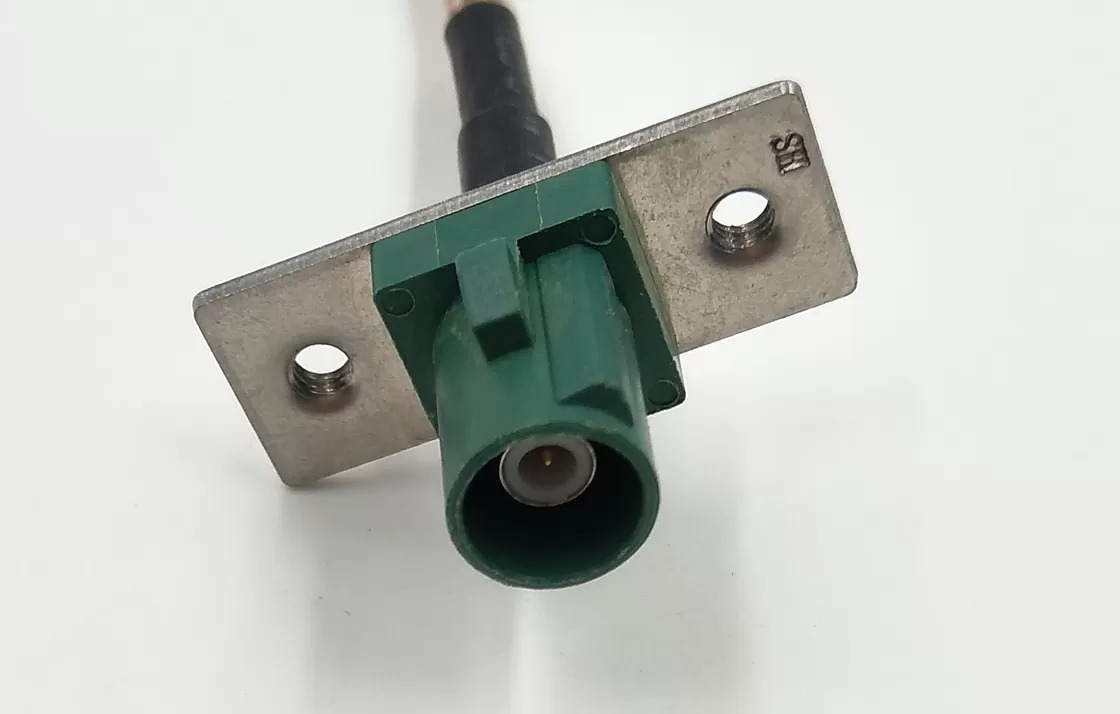

RoHs Fakra Connector Assembly Coding E With Metal Mounting Plate RG 178 Cable
SIA-SMBE-178-OPN-L
- Frequency： DC ~ 4 GHz
- Gender： Male
- Termination Style： Soldering
- Code： E
- Orientation： Straight
- Parameters
- Frequency： DC ~ 4 GHz
- Gender： Male
- Termination Style： Soldering
- Code： E
- Orientation： Straight
General Features:
1. Color coded and keyed shrouds: Prevents mis-mating and helps guide proper connection
2. Designed for automotive telematics applications: Meets USCAR specifications
3. Frequency DC to 4 GHz: Ideal for wireless and GPS applications
Applications:
1. Aerospace and Defense: GPS
2. Automotive: Audio, navigation, infotainment, Bluetooth, GPS
3. Commercial Vehicle: Audio, navigation, infotainment, Bluetooth
4. Consumer: GPS
5. Smart Phones and Mobile Devices: GPS
6. Telecommunications: Bluetooth, GPS tracking, positioning and navigation devices
Specification:
Electrical | |
Frequency | DC ~ 4 GHz |
SWR | <=1.5 |
Impedance | 50 OHM |
Dielectric Withstanding Voltage | 1000 VRMS |
Insulation Resistance | 1000 MΩ min |
Contact Resistance (Center Contact) | <20 mΩ |
Contact Resistance (Out Contact) | < 10 mΩ |
Insertion Loss | < 0.3 dB |
Mechanical | |
Mating Durability | 100 mating cycles min |
Plastic Housing Engagement Force | |
Engagement | 20 N |
Disengagement | 20 N |
