4G LTE Magnetic Omni Directional Antenna RG 174 With SMA Male Connector
SIA-MM4000-35155B-1
Application:
1.Wi-Fi /WLAN /MEMO /Bluetooth System
2. Router
3. IEEE802.11 WLAN System
4. Wireless Communication System
Specification
A. Electrical Characteristic | |
Frequency | 700 ~ 2700 MHz |
Impedance | 50 ohm |
S.W.R | 2.0 Max |
Peak Gain | 3 dBi |
Return Loss | >= 10 dB |
B. Material & Mechanical Characteristics | |
Cable Type | RG 174 Cable |
Connector Type | SMA Connector |
Body | ABS, Black |
C. Environmental | |
Operation Temperature | - 40 ˚C ~ + 65 ˚C |
Storage Temperature | - 40 ˚C ~ +80˚C |
Characteristics and Reliability Test:

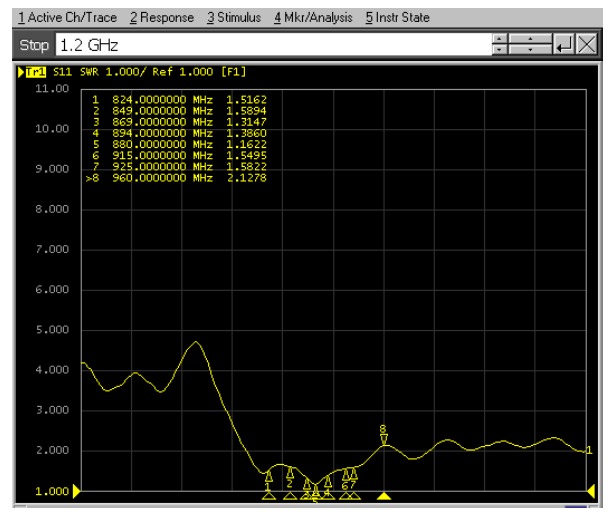

VSWR
Measuring Method
The antenna is placed in the handset or an equivalent test fixture.
The handset is dropped with the antenna downwards onto a metal plate.
